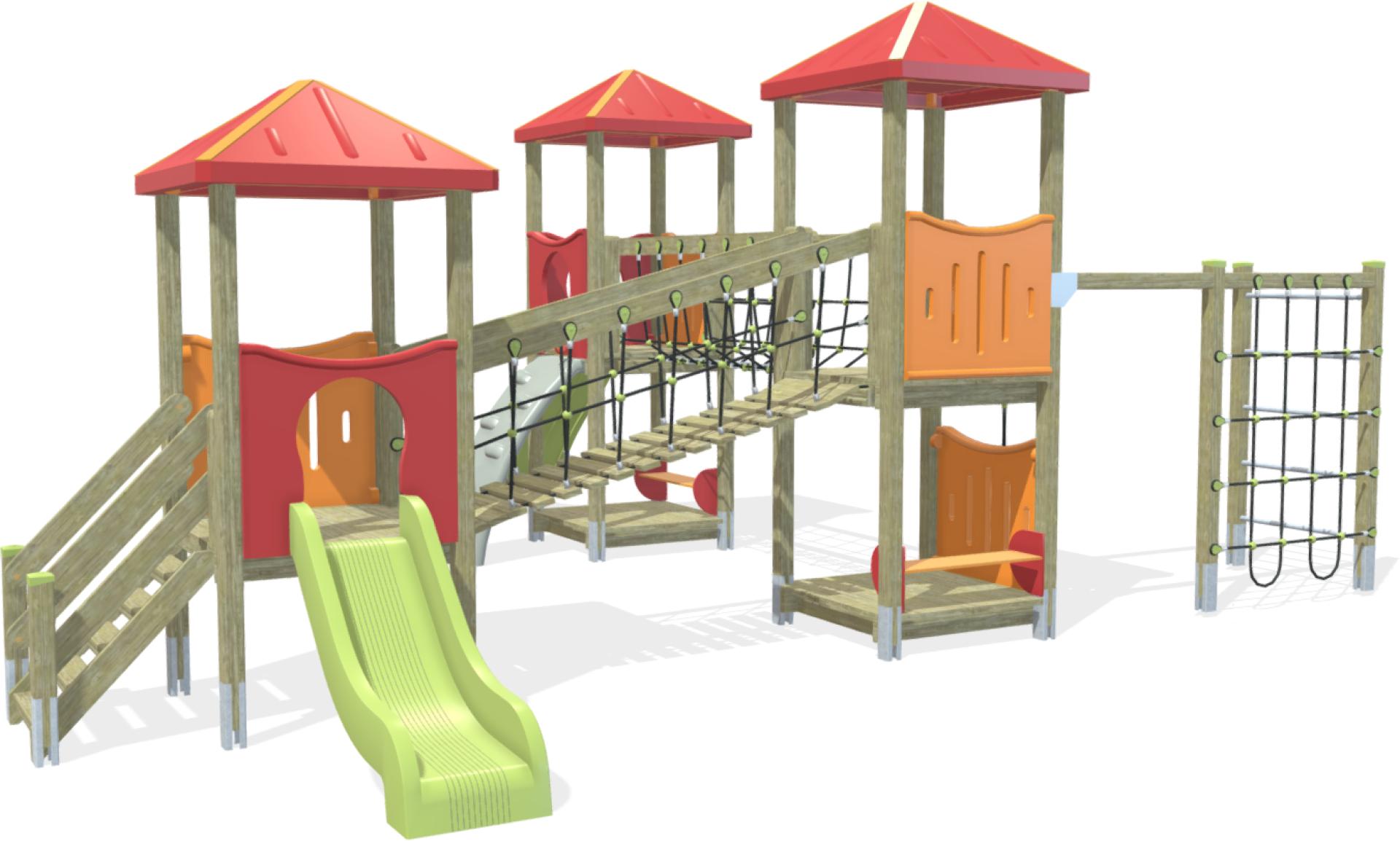

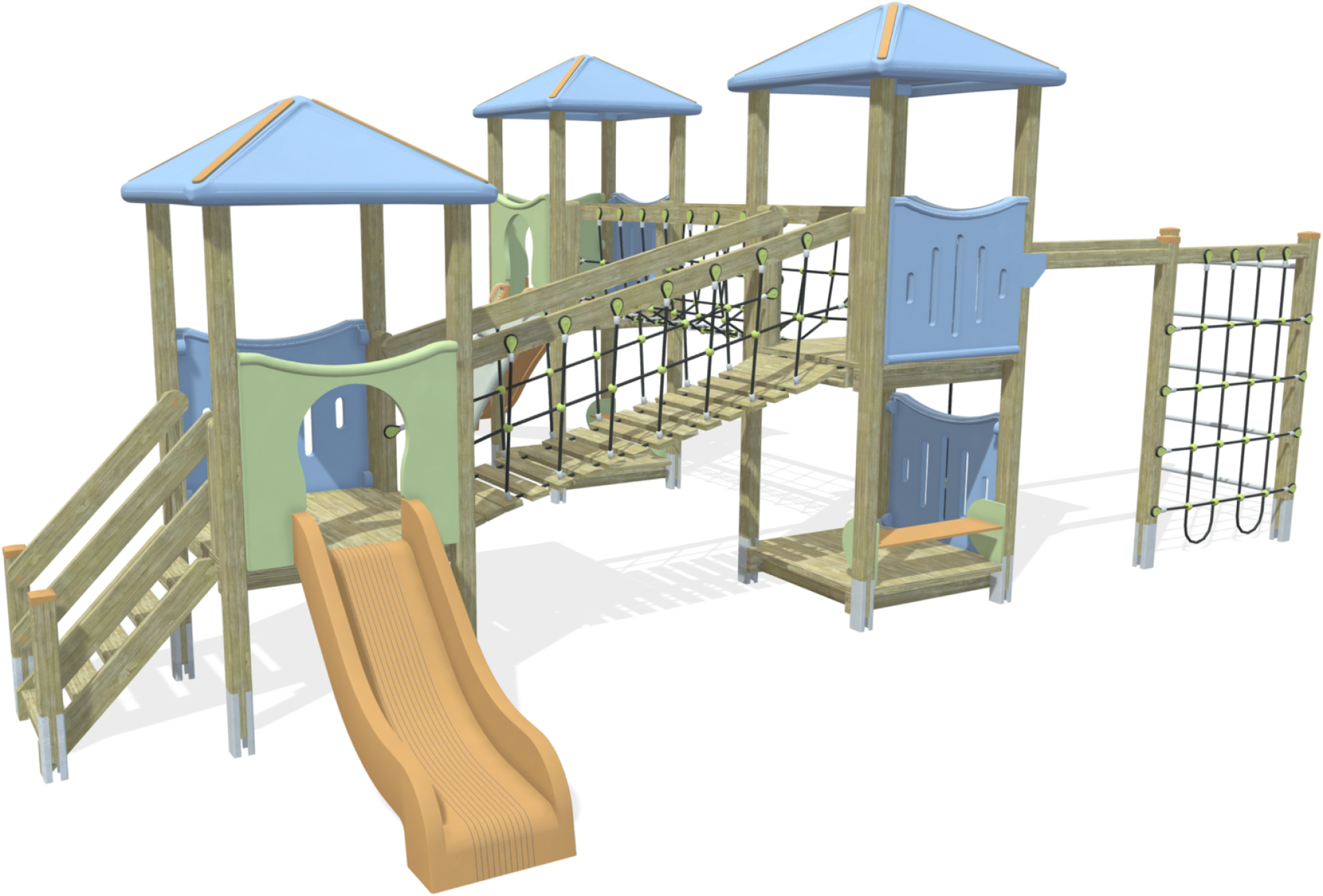

Max | XM309P

COMPOSED OF:

  • Glulam two-layer struts: cross section 9x9 cm + ground brackets
  • 112x112 cm solid wood platforms: 33 mm thick
  • set of non-slip steps, h 84 cm
  • three rotationally-moulded polyethylene four-pitched roofs
  • rotationally-moulded polyethylene parapets
  • rotationally-moulded polyethylene slides: h 84 cm + h 144 cm
  • polyethylene is 100% recyclable
  • rope bridge with 16 mm twisted ropes covered in polypropylene
  • bridge with mobile joists, 42 mm thick with 16 mm twisted ropes
  • gym with climbing net/rope/ladder
  • benches
  • kit with galvanised bolts for assembly

    • Height

    340 cm

    Width

    822 cm

    Length

    777 cm

    Fall height

    144-198 cm

    Safety area

    1223x1107 cm

    combined structures max xm309p combined structures max xm309p

    See the data sheet

    Request more information
