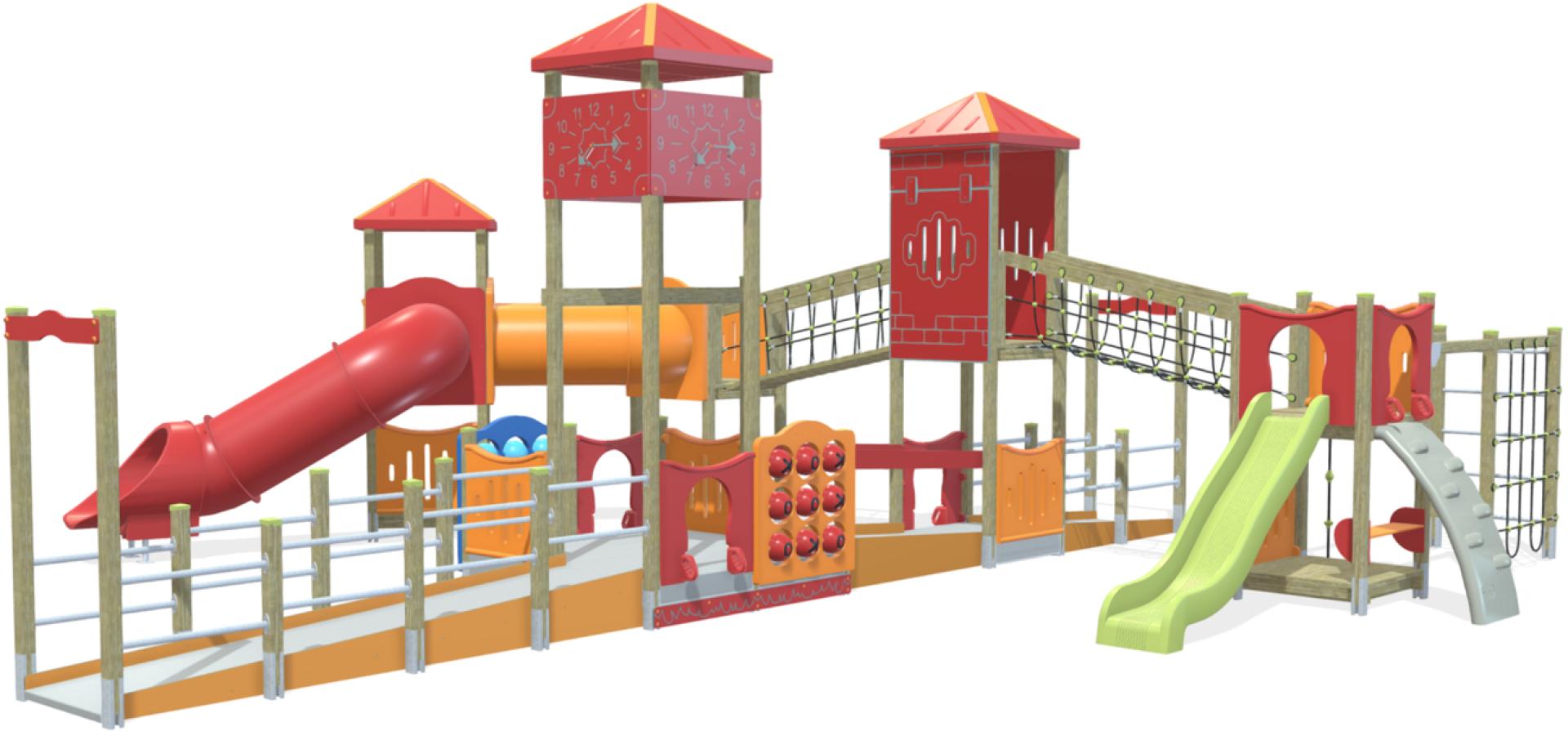

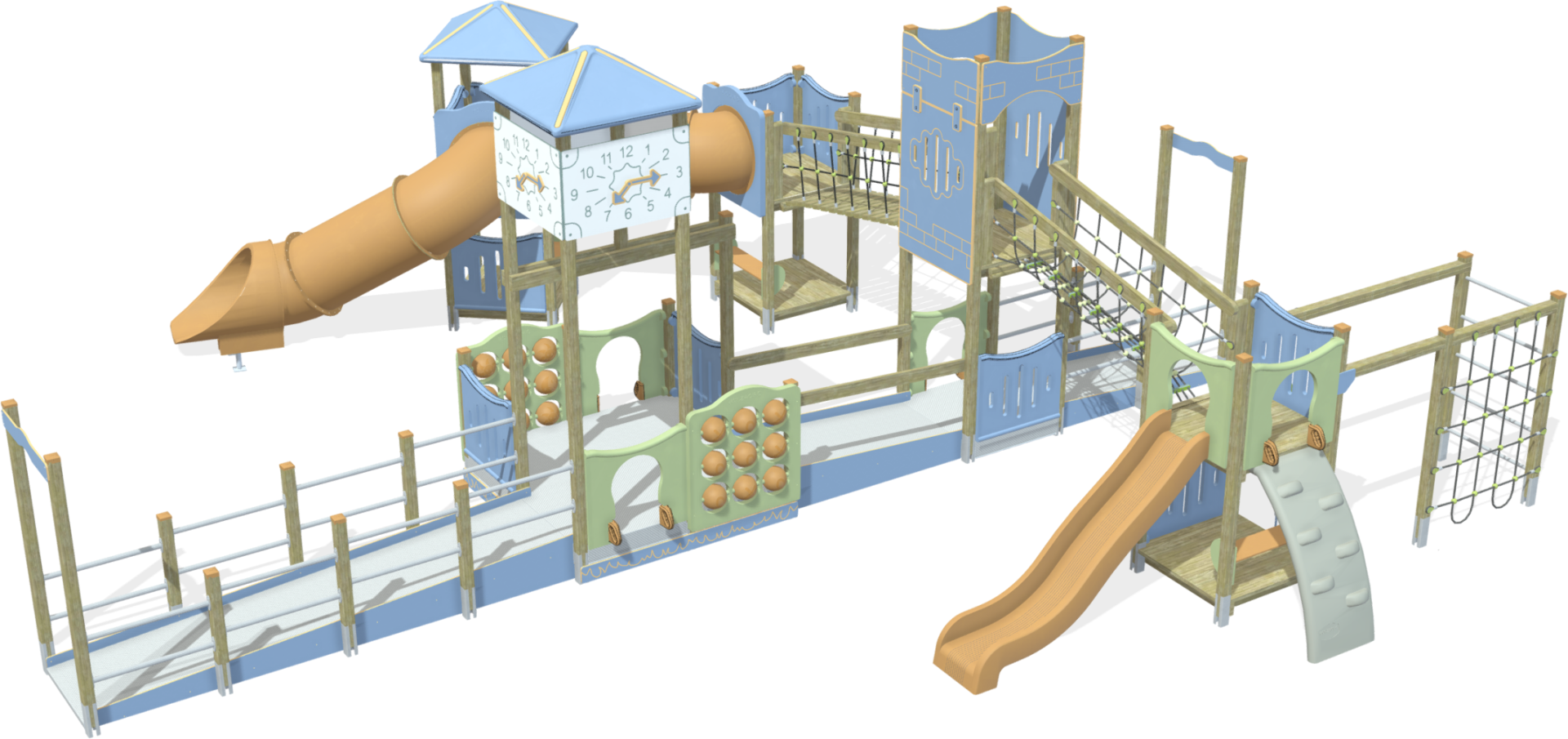

Max | XM403

COMPOSED OF:

  • Glulam two-layer struts: cross section 9x9 cm + ground brackets
  • 112x112 cm solid wood platforms: 33 mm thick
  • aluminium pushchair access ramp
  • twisted rope ladders h 144 cm with polythene rungs
  • three rotationally-moulded polyethylene four-pitched roofs
  • rotationally-moulded polyethylene parapets
  • rotationally-moulded polyethylene parapet with porthole and bell tower
  • rotationally-moulded polyethylene slide: h 144 cm
  • tube slide, h 144 cm, diameter 80 cm, with rotationally-moulded polyethylene elements
  • polyethylene is 100% recyclable
  • 16 mm twisted rope bridge covered in polypropylene
  • solid wood bridge with mobile joists, 42 mm thick with 16 mm twisted ropes
  • 80 cm curved tube bridge with rotationally-moulded polyethylene elements
  • polyethylene noughts and crosses activity panel with revolving spheres
  • 16 mm twisted rope climbing nets covered in polypropylene
  • gym with climbing net/rope/ladder
  • benches
  • kit with galvanised bolts for assembly

    • Height

    448 cm

    Width

    1181 cm

    Length

    1041 cm

    Fall height

    35-144-192-198 cm

    Safety area

    1370x1510 cm

    combined structures max xm403 combined structures max xm403

    See the data sheet

    Request more information
